1XN Optical Switch (Polarization Maintaining Fiber)
ANFiber’s 1XN Polarization Maintaining Fiber Optical Switch (4,8,10,12,16,24,32,64,128) is a optical path control device that connects optical channels by redirecting an incoming optical signal into a selected output fiber.It features low insertion loss, fast response time, high extinction ratio, and extremely high reliability and repeatability.1XN PM Fiber Optical Switch can be built as 1X4,1X8,1X10,1X16,1X24,1X32,1X48,1X96,1X128 etc.
- Description
- Reviews (0)
Description
ANFIBER’s 1×N Optical switch(Polarization Maintaining Fiber)(4,8,10,12,16,24,32,64,128) is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Applications of PM Optical Switch
Ring Network
Remote Monitoring in Optical Network
Testing of Fiber, Optical Component
Polarization maintaining optical system
Features of PM Optical Switch
More Than 128 Channels
Low Loss and High Reliability
high extinction ratio
Parallel Interface (TTL)
Modularized Design
Specifications of PM Optical Switch
| Parameters | Unit | ANFIBER-FSW-1×N | |||
| Insertion Loss | dB | 1 < N ≤ 45 | 45 < N ≤ 88 | 88 < N ≤ 128 | |
| Typ: 0.6 Max: 1.0 | Typ: 1.2 Max: 1.5 | Typ: 1.5 Max: 1.8 | |||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 | ||
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 | ||
| Return Loss | dB | MM ≥ 35 SM ≥ 55, PM≥ 50 | |||
| Crosstalk | dB | ≥ 50 | |||
| ER(Extinction Ratio) | dB | ≥ 18 | |||
| WDL | dB | ≤ 0.25 | |||
| TDL | dB | ≤ 0.30 | |||
| Repeatability | dB | ≤ ±0.05 | |||
| Durability | Cycles | ≥ 10 Million | |||
| Switching Time | ms | ≤ 10 (Sequence switch time of adjacent channel) | |||
| Optical Power | mW | ≤1000 | |||
| Operating Temperature | ℃ | -20 ~ +70 | |||
| Storage Temperature | ℃ | -40 ~ +85 | |||
| Relative Humidity | % | 5 ~ 95 | |||
| Dimension | mm | 135×40×32 (N≤4) | 135×64×32 (N≤12) | 184×78×36 (N≤16) | |
| 184×78×66 (N≤45) | 184×156×66 (N≤88) | 184×220×66 (N≤128) | |||
| 140×77.5×32 (N≤16) | 140×77.5×64 (N≤32) | ||||

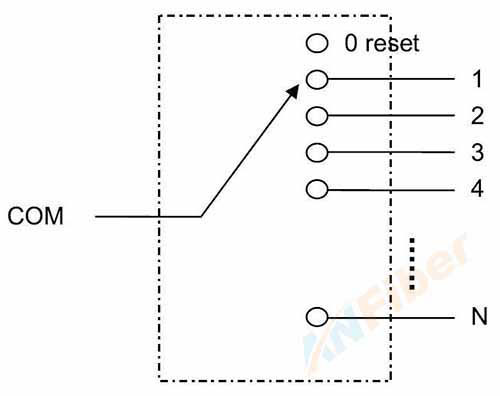

Optical Route of PM Optical Switch
Ordering Information:ANFIBER-FSW-1XN-A-B-C-D-E
| N | A | B | C | D | E |
| Channel | Fiber Type | Test Wavelength | Tube Type | Fiber Length | Connector |
| 1 ~ 128 | PM:PM Fiber
SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others |
850: 850nm
1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others |
90: 900um
20: 2.0mm 30: 3.0mm X: Others |
05: 0.5m
10: 1.0m 15: 1.5m X: Others |
OO:None
FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
Please provide the correct P/N code in the order information when you inquire about Polarization Maintaining Fiber 1XN Optical Switch.
Please provide detailed description if you need custom it.
Please contact us:[email protected],we wish to cooperate with you.thanks!
