MEMS 1×4 Optical Switch
ANFiber’s MEMS 1×4 Optical Switch with Single Mode or Multi-Mode fiber is a optical path control device that allows the automated and repeatable connection of one common fiber to 4 number of output or input fibers. These MEMS all-optical switches are bi-directional and can be used in either the 1×4 or 4×1 direction.It utilizes the proprietary microelectromechanical system (MEMS) technology to achieve reliable optical performance and excellent durability.The Small size package withstands rugged environments and it is well suited for direct mounting on circuit boards.
- Description
- Reviews (0)
Description
Anfiber’s MEMS 1×4 Single-mode and Multimode Fiber Optical Switch is a very fast opto-mechanical switch working over the wavelength spectrum:1240nm – 1640nm (Single-mode) and 700nm – 1700nm (Multimode).The highly reliable switching mechanism is based on microelectromechanical system (MEMS) technology and features fast switching time and low insertion loss.
Applications of MEMS Optical Switch:
Test and Measurement
Sensor Switching
Wavelength provisioning
Features of MEMS Optical Switch:
Low Insertion Loss
Response Time:SM:0.5ms MM:2ms
1X4 switch,single mode or multimode
non-latching
Reliable,miniature size
Specifications of MEMS Optical Switch:
| Parameter | Single Mode(1X4) |
| Wavelength range (nm) | 1240~1640 |
| Insertion loss (dB) | ≤1.0 (Typ 0.5) |
| Crosstalk (dB) | ≥ 60 (Typ 75) |
| Backreflection (dB) | ≥ 50 (Typ 55) |
| Polarisation Dependent Loss (dB) | ≤0.10 |
| Switch time (ms) | ≤1 (Typ 0.5) |
| Switching Voltage ( V ) | 5 |
| Fiber Pigtail (µm) | 9/125/900 |
| Durability (cycles) | no wear out |
| Power Consumption (mW) | ≤50 (Typ 10) |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40~85 |
| Package Size (L x W x H) (mm) | 80 x 50 x 9.5 |
| Parameter | Multi-Mode |
| Wavelength range (nm) | 700 ~ 1700 |
| Insertion loss (dB) | ≤1.5 (Typ 1.0) |
| Crosstalk (dB) | ≥ 45 (Typ 55) |
| Backreflection (dB) | ≥ 35 (Typ 45) |
| Polarisation Dependent Loss (dB) | ≤0.15 |
| Repeatabiliy (dB) | ≤0.001 |
| Switch time (ms) | ≤20 (Typ 2) |
| Switching Voltage ( V ) | 5 |
| Fiber Pigtail (µm) | 62.5/125/900 or 50/125/900 |
| Durability (cycles) | no wear out |
| Supply Voltage (V) | 4.0~5.25 (Typ:5) |
| Power Consumption (mW) | ≤50 (Typ 10) |
| Operation temperature(℃) | 0~70 |
| Storage temperature (℃) | -40 ~ 85 |
| Package Size (L x W x H) (mm) | 80 x 50 x 9.5 |

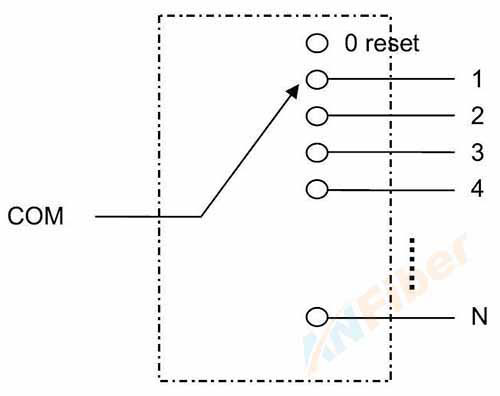

Optical Path of MEMS Optical Switch:
Order information:ANFIBER-A-B-C-D-E-F
| A | B | C | D | E | F |
| Type | Wavelength | Fiber Length (m) | Fibre type | Fiber diameter | Connector |
| 1×4
Specify Custom |
1=850nm
2=1310nm 3=1490nm 4=1550nm 5=1625nm 6=1310/1550nm 7=850/1310nm S=Specify Custom |
0.5=0.5m
1.0=1.0m 1.5=1.5m S=Specify Custom
|
9=SMF28,9/125
50=MM 50/125 62=MM 62.5/125 S=Specify Custom |
1=250um bare fibre
2=900um loose tube 3=2.0mm loose tube S=Specify Custom |
OO: None
FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Others |
Please provide the correct P/N code in the order information when you inquire about MEMS 1X4 Optical Switch.
Please provide detailed description if you need custom it.
Please contact us:[email protected],we wish to cooperate with you.thanks!
