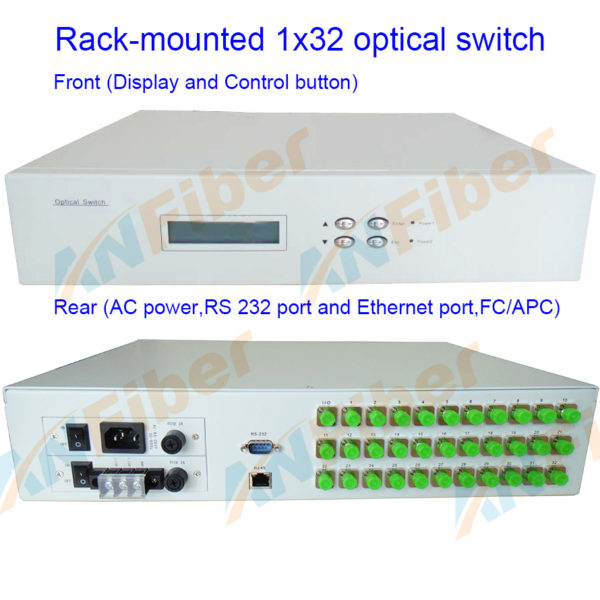

Rack-mounted 1xN optical switch (4,8,10,12,16,24,32,64,128)
ANFiber’s Rack-mounted 1xN optical switch (4,8,10,12,16,24,32,64,128) is a optical path control device that allows a common input fiber to be switched to any one of N output fibers. The optical switch is remote Controled by RS232(or RS-485) or Ethernet Interface.The 1xN optical switch has high reliability with continuous operation for many years.It configurations range from 1X2 up to 1X128,and can be built as 1X4,1X8,1X10,1X16,1X24,1X32,1X48,1X96,1X128 etc.
- Description
- Reviews (0)
Description
Anfiber-Rack-mounted 1XN optical switch(1＜N≤128) is a kind of optical path control device which has the function of optical path control and switch. It can choose working optical path switch manually with button and also control optical path switch or scan in frequency the optical switch which need to be monitored with RS 232 port and Ethernet port.
Features of 1XN optical switch
- Low loss, High Reliability, High Stability
- LCD Display
- RS232 and Ethernet Interface
Applications of 1XN optical switch
- Ring network
- Testing of fiber, optical component
- Optical network auto-monitor
Performances
| Parameters | ANFIBER-FSW-1XN-U (1＜N≤128) | |||||
| Insertion loss | dB | 1<N≤16 | 16<N≤32 | 32<N≤64 | 64<N≤128 | |
| Typ:0.6 Max:0.8 | Typ:0.8 Max:1.0 | Typ:0.8 Max:1.0 | Typ:1.0 Max:1.2 | |||
| Operating wavelength | nm | 850±40/1300±40 | 1260~1650 | |||
| Wavelength range | nm | 850/1300 | 1310/1490/1550/1625 | |||
| Return loss | dB | SM≥55 MM≥50 | ||||
| Crosstalk | dB | SM≥55 MM≥55 | ||||
| PDL | dB | ≤0.05 | ||||
| WDL | dB | ≤0.25 | ||||
| TDL | dB | ≤0.25 | ||||
| Repeatability | dB | ≤±0.05 | ||||
| Lifetime | times | ≥107 | ||||
| Transmission power | mW | ≤500 | ||||
| Switch time | ms | ≤10 (sequence switch time of adjacent channel) | ||||
| Operating temperature | ℃ | -20～+70 | ||||
| Storage temperature | ℃ | -40～+85 | ||||
| Power supply | V | AC 85-264V,50/60Hz OR DC(36-72)V | ||||
| Dimensions | mm | 1U L483XW200XH44 (Up to 16 channel) customization is available. | ||||
| 2U L483XW303XH89 (Up to 32 channel) customization is available. | ||||||
| 3U L483XW303XH139 (Up to 64 channel) customization is available. | ||||||
| 4U L483XW303XH185 (Up to 128 channel) customization is available. | ||||||
Optical Route (1＜N≤128) of 1XN optical switch:
Ordering Information ANFIBER-FSW-1XN-A-B-C-D-E-F
| N | A | B | C | D | E | F |
| Channel | Package | Mode | Wavelength | Voltage Type | Fiber type | Connector |
| 1~128
etc |
1U
2U 3U 4U etc |
S:SM
M:MM |
85: 850nm
13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm X: Other |
AC: 85-264V
DC: 36-72V AC/ DC: 220V＆48V |
5:50/125
6:62.5/125 9: 9/125 X: Other
|
FP: FC/PC
FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other |
Please provide the correct P/N code in the order information when you inquire about Rack-mounted 1XN Optical Switch.
Please provide detailed description if you need custom it.
Please contact us:[email protected],we wish to cooperate with you.thanks!
