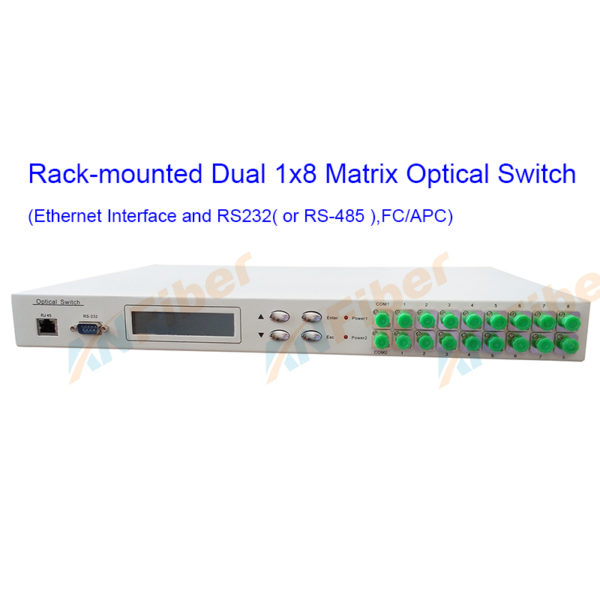

Rack-mounted Dual 1xN optical switch (4,8,10,12,16,24,32,64,128)
ANFiber’s Rack-mounted Dual 1xN optical switch (4,8,10,12,16,24,32,64,128) is a kind of optical path control device with two times 1XN fiber optic switches.We can unified control and independent control the switches.The optical switch is remote Controled by RS232(or RS-485) or Ethernet Interface with a graphic Software.Dual 1xN Optical Switch configurations range from 1X2 up to 1X128,and can be built as 1X4,1X8,1X10,1X16, 1X24,1X32,1X48,1X96,1X128 etc.
- Description
- Reviews (0)
Description
Anfiber- Rack-mounted Dual 1XN Optical Switch (N=4,8,10,12,16,24,32,64,128) is a kind of dual optical path control device which has the function of dual optical path control and switch. It can choose working optical path switch manually with button and also control optical path switch or scan in frequency the optical switch which need to be monitored with RS 232 port and Ethernet port.
Features of Dual 1XN Optical Switch
- Low loss, High Reliability, High Stability
- LCD Display
- RS232 and Ethernet Interface
- Single mode, Multi-mode fiber, etc
- two times 1XN Optical Switch
Applications of Dual 1XN Optical Switch
- Ring network
- Testing of fiber, optical component
- Optical network auto-monitor
Performances
| Parameters | ANFIBER-FSW-Dual 1XN | |||||
| Insertion loss | dB | 1＜ N ≤16 | 16＜ N ≤32 | 32＜ N ≤64 | 64＜ N ≤128 | |
| ≤0.8 dB | ≤1.0 dB | ≤1.2 dB | ≤1.5 dB | |||
| Operating wavelength | nm | 850±40 / 1300±40 | 1260~1650 | |||
| Test Wavelength | nm | 850/1300 | 1310/1550 | |||
| Return loss | dB | SM≥50 MM≥50 | ||||
| Crosstalk | dB | ≥55 | ||||
| PDL | dB | ≤0.05 | ||||
| WDL | dB | ≤0.25 | ||||
| TDL | dB | ≤0.25 | ||||
| Repeatability | dB | ≤±0.05 | ||||
| Lifetime | times | ≥107 | ||||
| Transmission power | mW | ≤500 | ||||
| Switch time | ms | ≤10(Sequence switch time of adjacent channel) | ||||
| Operating temperature | ℃ | -10～+60 | ||||
| Storage temperature | ℃ | -40～+80 | ||||
| Relative Humidity | % | 5 ~ 95 | ||||
| Supervision interface | Ethernet Interface and RS232( or RS-485 ) | |||||
| Power supply | V | AC 85-264V,50/60Hz OR DC(36-72)V | ||||
| Dimensions | mm | 1U L483XW200XH44 (Up to 16 channel) customization is available. | ||||
| 2U L483XW303XH89 (Up to 32 channel) customization is available. | ||||||
| 3U L483XW303XH139 (Up to 64 channel) customization is available. | ||||||
| 4U L483XW303XH177 (Up to 128 channel) customization is available. | ||||||
Ordering Information: ANFIBER-FSW-Dual 1×N-A-B-C-D-E-F
| N | A | B | C | D | E | F |
| Channel | Package | Mode | Wavelength | Voltage Type | Fiber type | Connector |
| 1~128
|
1U
2U 3U 4U X: Other |
S:SM
M:MM X: Other |
85: 850nm
13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other |
AC: 85-264V
DC: 36-72V AC/ DC: 220V&48V |
5:50/125
6:62.5/125 9: 9/125 X: Other |
FP: FC/PC
FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other |
Please provide the correct P/N code in the order information when you inquire about Rack-mounted Dual 1XN Optical Switch.
Please provide detailed description if you need custom it.
Please contact us:[email protected],we wish to cooperate with you.thanks!
